ICON

Introduction

미국 Palomar사에서 새로 출시된ICON 은 치료목적에 따라 여러가지 핸드피스를 이용해 다양하게 치료할 수 있는 최신 플랫폼 장비로 높은 파워와 쿨링을 지원하는 장비 입니다. AccuSpectrum, Photon Recycling, SmoothPulse같은 Palomar 만의 독자적인 기술력 또한 ICON의 특징입니다. ICON에 부착할 수 있는 핸드피스로는MaxG, MaxY, Non-Ablative Fractional laser인 1540XD와 1540XF가 있습니다.

기능 및 특장점

High Peak Power

Photon Recycling

Advanced Contact Cooling

Powerful cooling system adds protection and comfort, before, during and after treatment

Enhanced User Interface

Large touch screen has an easy-to-read interface, equipped with tracking technology that stores treatment data

ICON

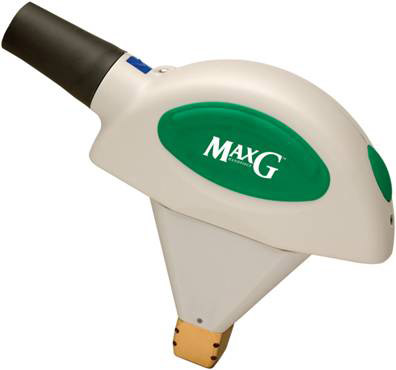

MaxG (Vascular Lesions & Pigmented Lesions)

---

4mm Adaptor for MaxG

Needed a small spot to close vessels on darker skin types (type IVs) Hard to close vessels on a platform device, even harder to close using a small spot

MaxG_ Specification

• Wavelength: 500-670 nm & 870-1200 nm
• Spot Size: 10 x 15 mm
• Maximum Fluence: 80 J/cm2
• Pulsewidth: 5 - 100 ms

ICON

MaxY( Hair Reduction & Pigmented Lesions)

Spectral Output

MaxY_ Specification

• Wavelength: 525-1200 nm
• Spot Size: 16 x 46 mm
• Maximum Fluence: 50 J/cm2
• Pulsewidth: 1 - 100 ms

ICON

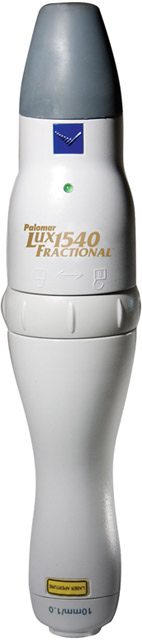

1540 Fractional Laser with XD and XF

1540XD™ Micro Lens

• XD(X-tra Deep) Lens - For maximum non-ablative depth treatment
• Using compression and a unique lens design, the XD lens allows for maximum non-ablative depth treatment.

1540 XF™ Micro Lens

• XF(X-tra Fast) Lens - For high speed non-ablative treatment
• High speed non-ablative fractional resurfacing with increased surface coverage typically allows for a full face

Specification

	1540XD	1540XF
Wavelength(nm)	1540	1540
Spot Size(mm)	12 x 12	15
Pulsewidth(ms)	15	10, 15
#of Microbeams	49(7Ⅹ7)	175
Microbeam density(/cm2)	25mB	115mB

Deep Heating Principle
