Pearl
Introduction

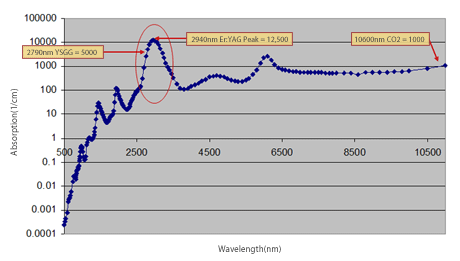

The Pearl procedure combines the impact of resurfacing lasers with the gentleness and safety of non-invasive procedures to treat aging and sun-damaged skin. Pearl, using YSGG-2790nm wavelength, delivers significant results in 1-2 treatments compared to the 4-6 treatments required with fractional non-ablative devices. YSGG-2790nm is novel wavelength designed to improve patient treatment experience and results.Water Absorption vs. Wavelength

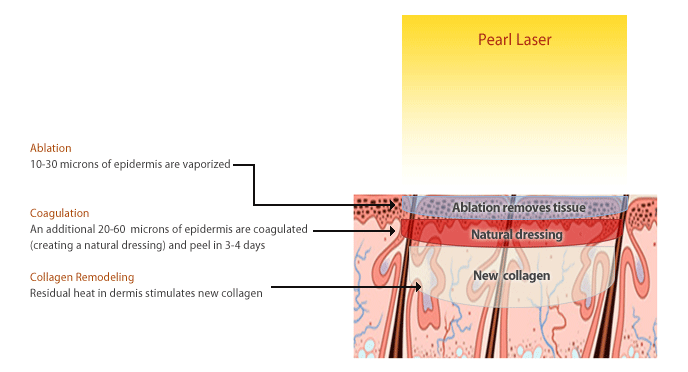

Mechanism of Action
Comparison of Thermal Characteristics
| Er:YAG (2940nm) | CO2 (10600nm) | YSGG (2790nm) |
|---|---|---|
 |
 |
 |
| Er:YAG 2.94µm primarily vaporizes tissue due to its high water absorption. Heat is confined in the epidermis. No hemostasis. | CO2 10.6µm, the margin between a safe, repeatable ablation and overheating the dermis is narrow as evidenced with numerous cases of non-transient pigmentation changes. | The goal for our YSGG 2.79µm is to ablate and coagulate to a controllable depth of epidermis while depositing some heat into the dermis, promoting new collagen. |

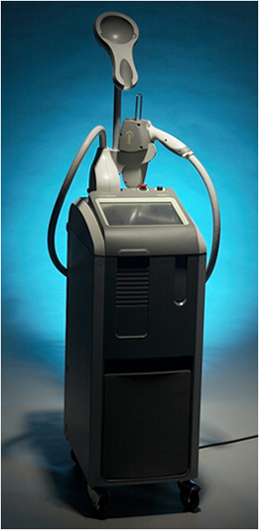

Specification
| Light Source | Er:YSGG |
|---|---|
| Wavelength | 2790nm |
| Fluence | 1.5 – 3.5J/cm2 |
| Pulse width | 0.3, 0.4, 0.5ms |
| Spot size | 6mm |
| Scan Size | 30ⅹ30 mm |
| Pulse Width Range | Sub-millisecond adjustment |
| Working Distance | 3.2 inches |
| Repetition rate | Single shot to 20Hz |
| Protective Window | Sapphire |
